5. Where are my virtual machines?

Modified on Mon, 23 Oct, 2023 at 6:31 PM


Please ensure you've set a password for your CapTechLab account.  To confirm, this means you can freely log into https://password.captechlab.org/.  If you need help, please read the solutions article on Activating Your CapTechLab Account.

  1. Navigate to http://lab.captechlab.org and Log in.

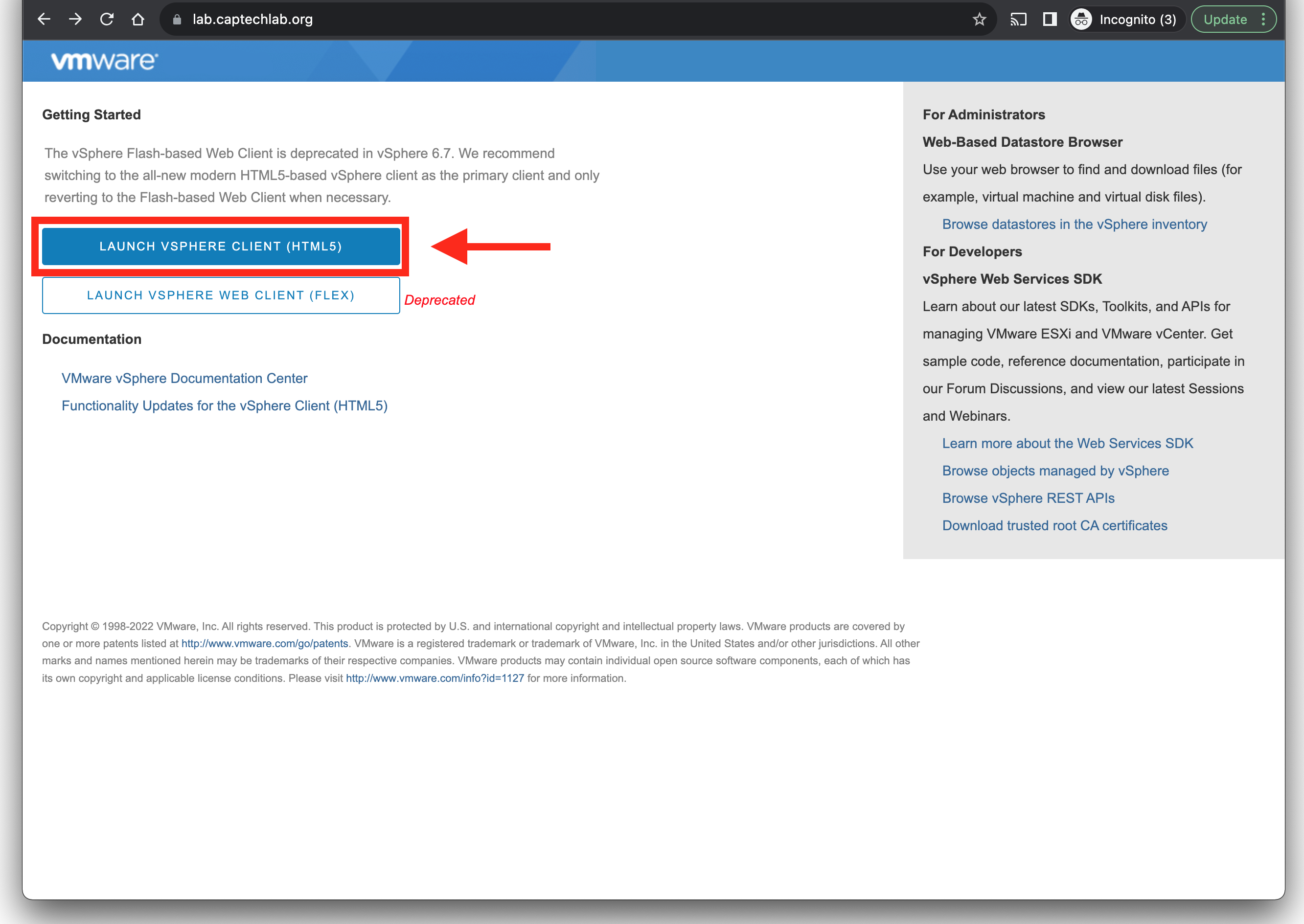

  2. Select "Launch VSphere Web Client (HTML5)

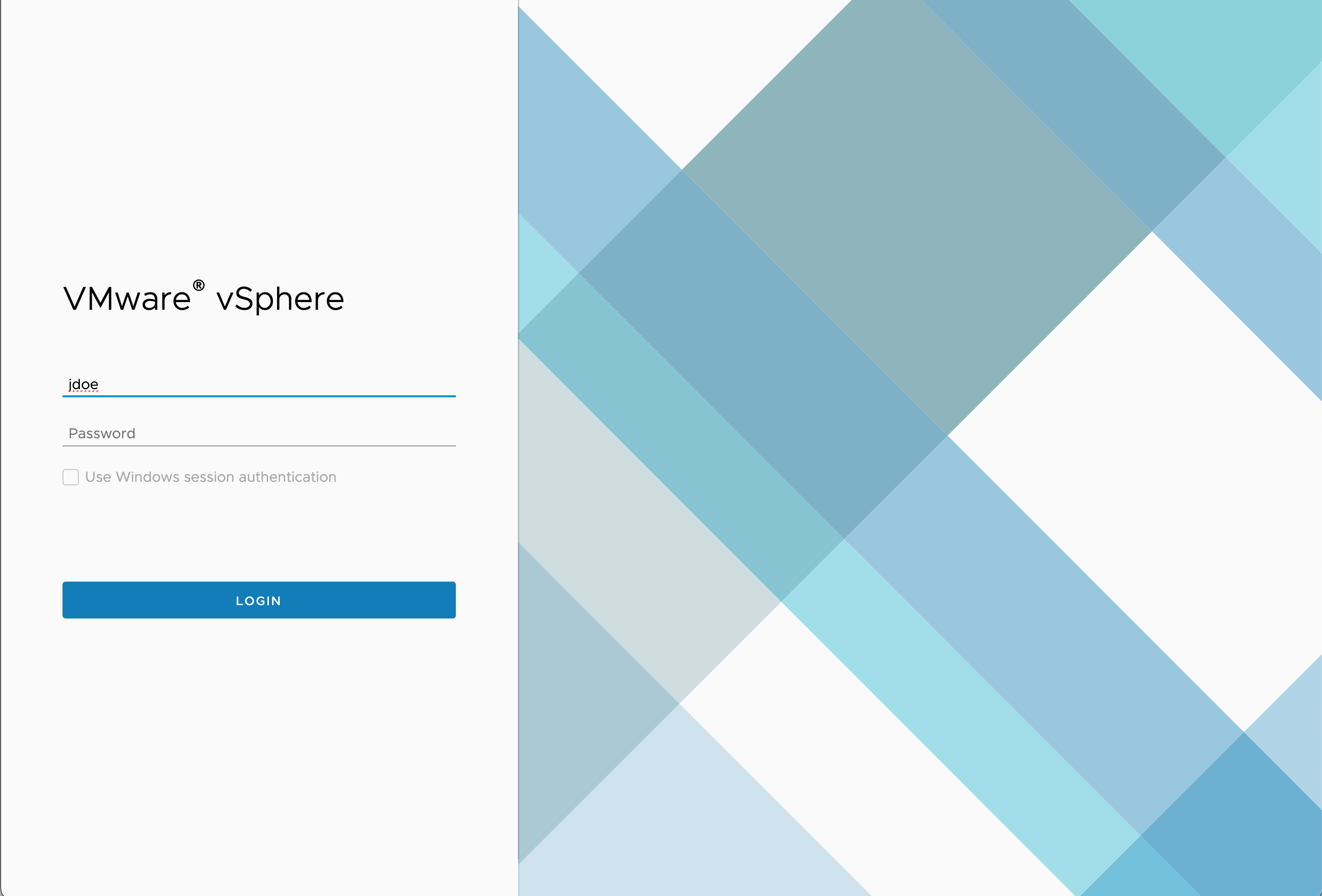

  3. Log in.
    See the Username solutions article to better understand when to use what username.

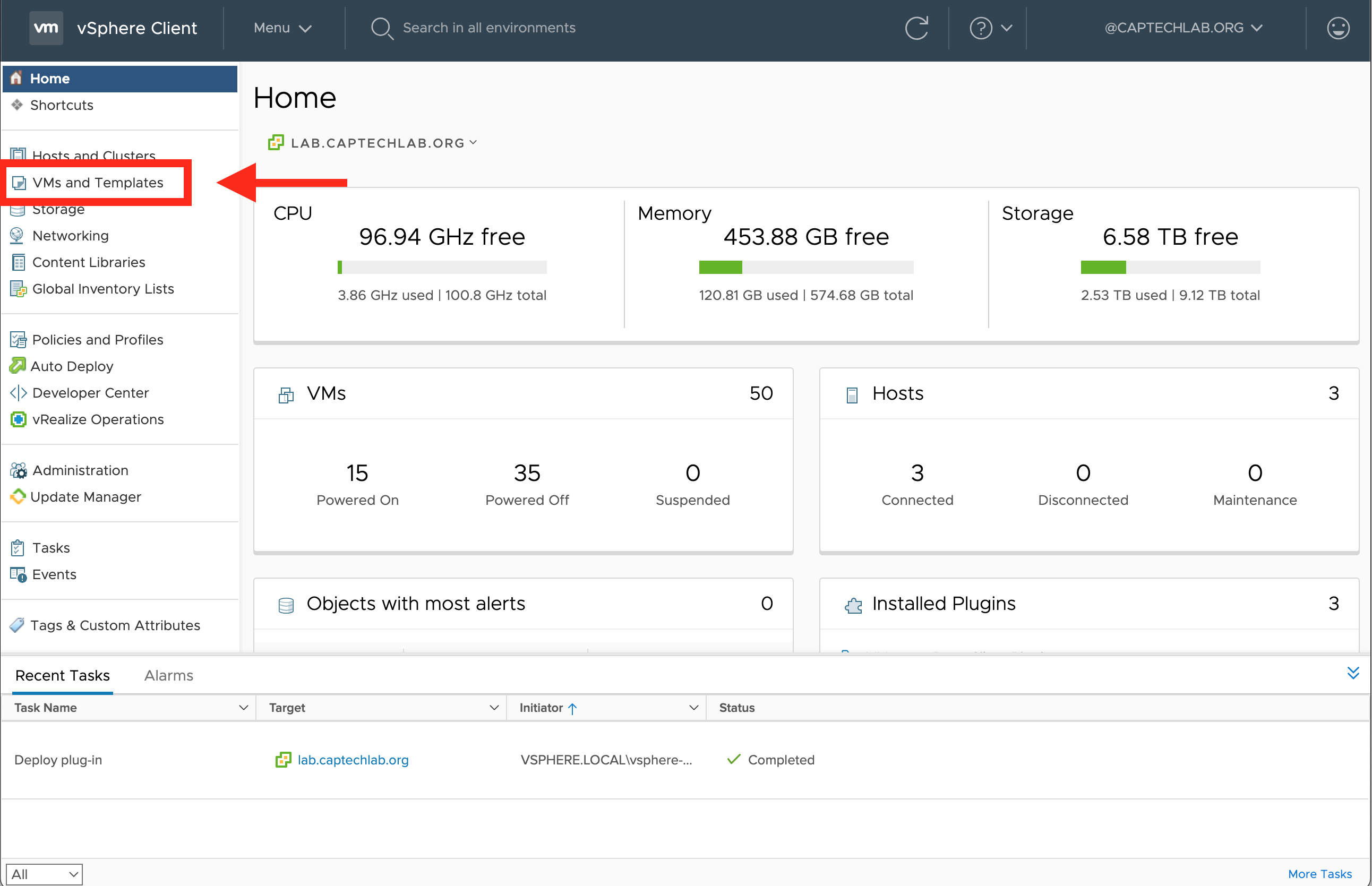

  4. Navigate "VMs and Templates”
  5. 3. Once under "VMs and Templates", expand the folder structure to starting with "lab.captechlab.org", then "Laurel", then "03-Production". From there, you should see the folder under which the entire course is deployed. which in this example is "IAE-675_A21_WEB" during Fall of the 2023/2024 academic year, so the folder is called "2024_FALL_IAE-675_A21_WEB".  Below that,if a studetn's name is John Doe, An individual deployment would be named "jdoe".

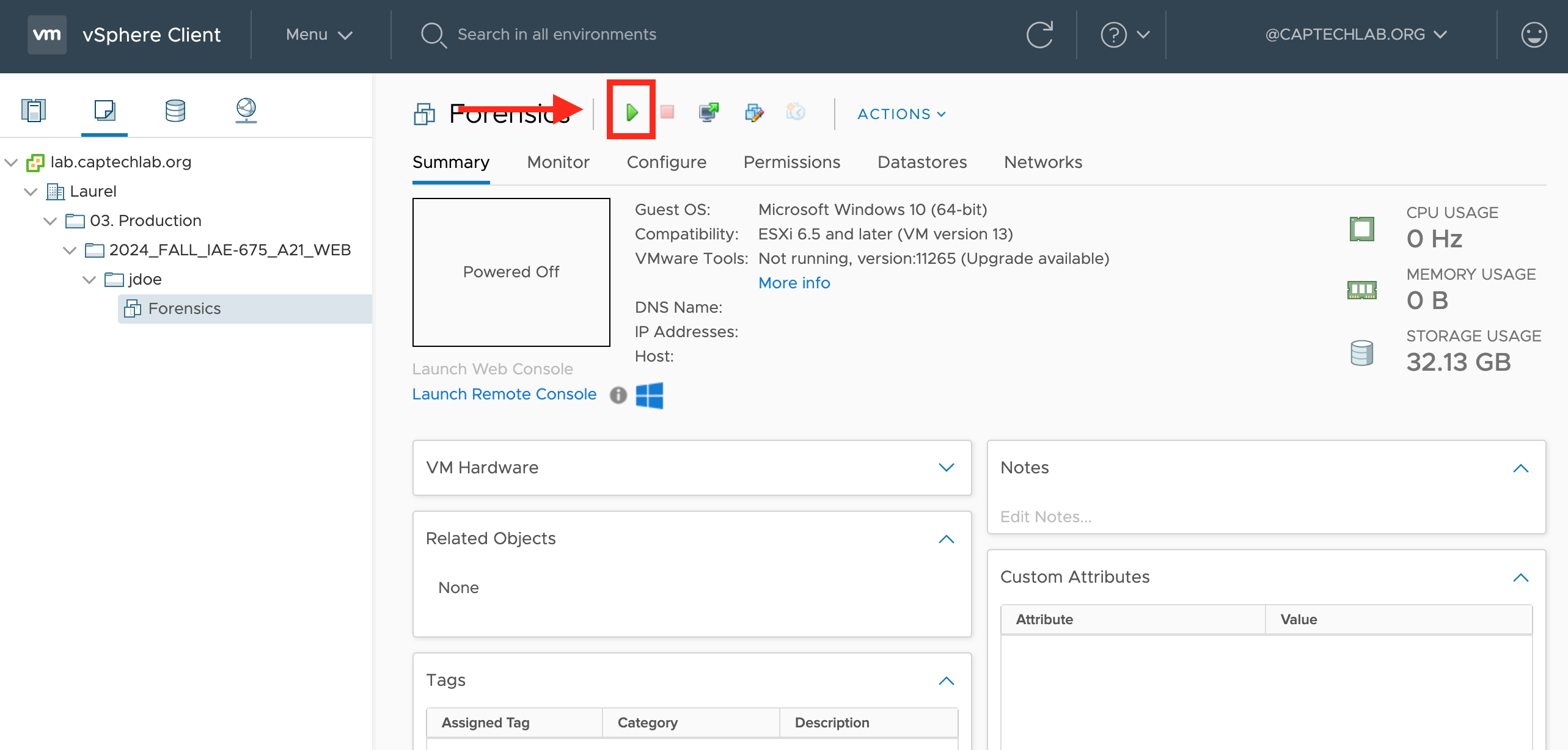

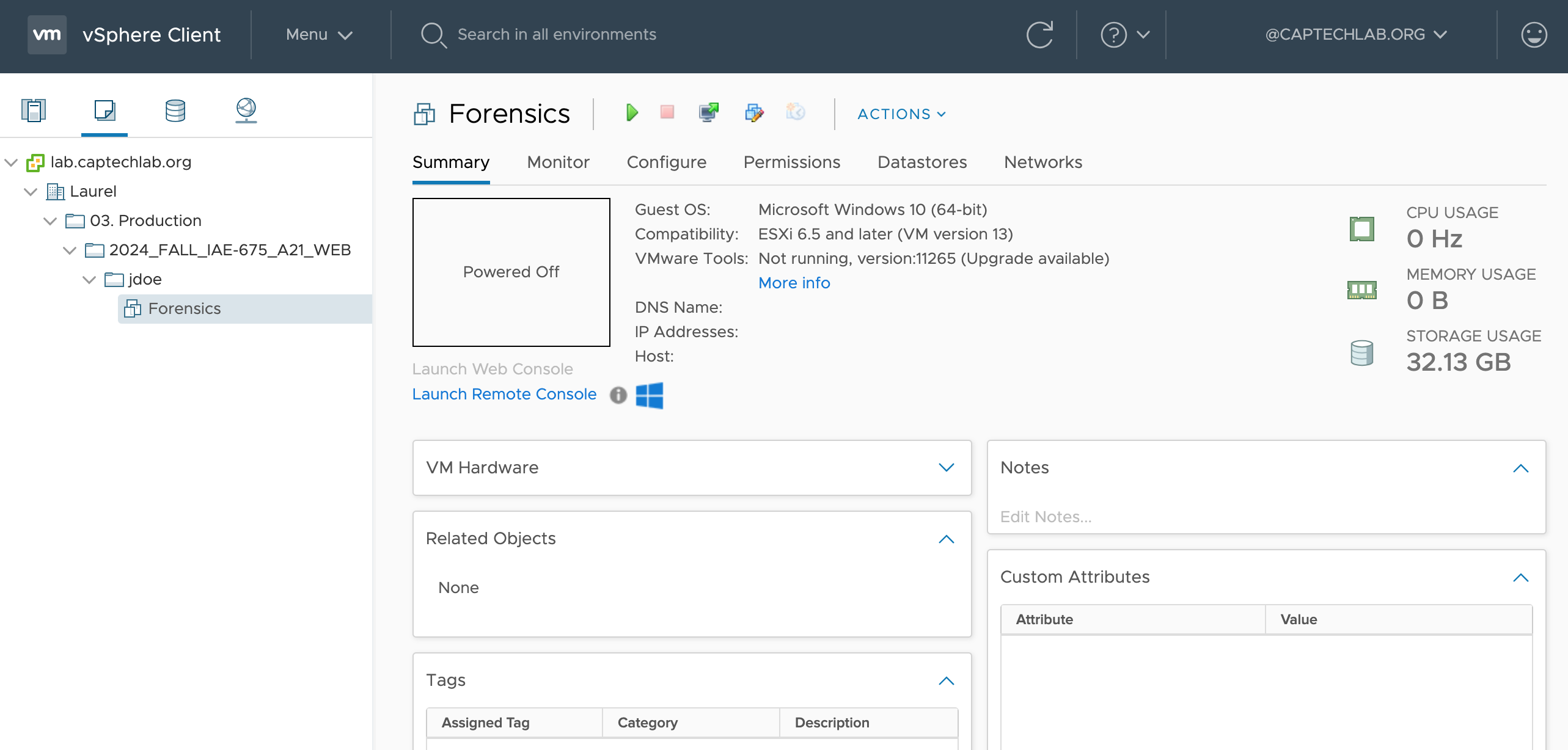

  6. Then select the Virtual Machine you'd like to access, in this case Forensics.  This Virtual Machine is off. To turn it on, Select the green play icon.

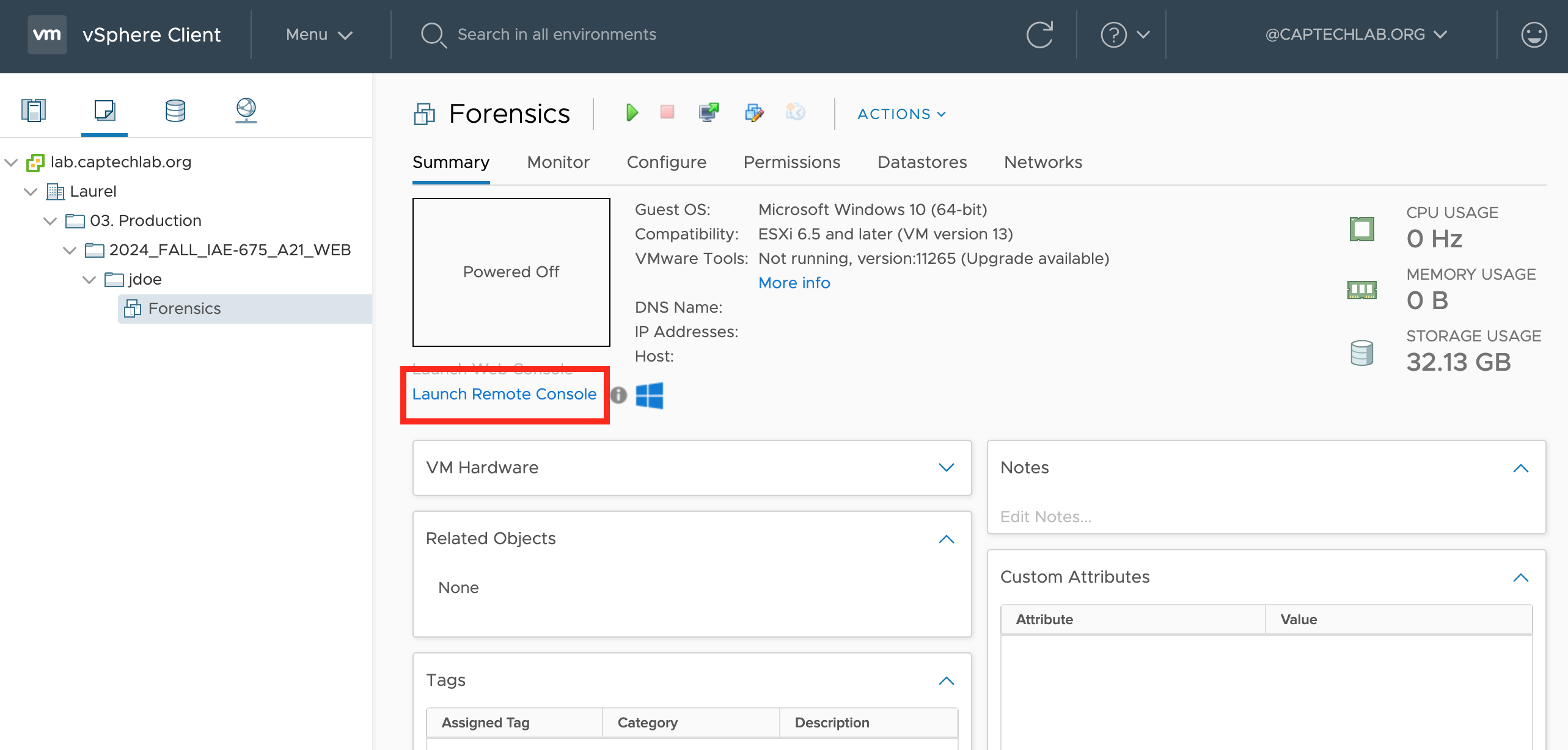

  7. Then Select the Summary Tab. If you've installed VMRC, you can then select the Launch Remote Console link and VMRC will open with a console to your virtual machine.
